Understanding the OSI and TCP/IP Models from a Hacker's Perspective

When diving into the world of cybersecurity, one of the fundamental concepts that every hacker, penetration tester, and security professional must understand is networking, specifically the OSI and TCP/IP models. These models are the backbone of how devices communicate over networks, and they offer hackers a framework to understand how data is transmitted, manipulated, and exploited.

From a hacker's perspective, knowing these models inside out can provide a roadmap for finding vulnerabilities, crafting exploits, and understanding the intricate ways in which data flows across the internet and internal networks. Let’s explore both models through the lens of a hacker and see how each layer presents unique opportunities and challenges.

The OSI Model: A Layer-by-Layer Hacker’s Guide

The OSI (Open Systems Interconnection) model is a conceptual framework that standardizes the functions of a telecommunication or computing system into seven distinct layers. Each layer serves a specific purpose and communicates with the layers directly above and below it. Here's how hackers view these layers:

1. Physical Layer (Layer 1)

This layer is all about the hardware: cables, switches, and physical transmission of data.

From a hacker’s perspective:
Physical access can mean direct access to a network. A hacker might try to intercept communications by tapping into a network cable or installing a rogue device, such as a Raspberry Pi, to sniff traffic or launch a man-in-the-middle attack. Social engineering tactics could be used to gain physical access to devices connected to the network.

2. Data Link Layer (Layer 2)

This layer handles error detection and correction, and frames data for transmission over the physical medium.

From a hacker’s perspective:
At Layer 2, hackers focus on exploiting network protocols like ARP (Address Resolution Protocol). Attacks such as ARP poisoning or spoofing are common, where the attacker tricks devices into sending data to the hacker's machine instead of the intended destination. Manipulating MAC addresses and conducting VLAN hopping are other tactics used at this layer.

3. Network Layer (Layer 3)

Responsible for packet forwarding, routing, and logical addressing.

From a hacker’s perspective:
The network layer is where IP addresses come into play. Hackers often exploit vulnerabilities in routing protocols (like BGP or OSPF) or manipulate IP packets to bypass firewalls and intrusion detection systems. Techniques such as IP spoofing, ICMP flooding (Ping of Death), and exploiting misconfigured network devices happen here. Attacks targeting this layer can disrupt or manipulate traffic flows within or between networks.

4. Transport Layer (Layer 4)

This layer is responsible for end-to-end communication and error recovery, with protocols like TCP (Transmission Control Protocol) and UDP (User Datagram Protocol).

From a hacker’s perspective:
Layer 4 is a goldmine for attacks that manipulate the transport layer protocols. TCP attacks such as SYN flooding (a type of DoS attack) can overwhelm a target system, while TCP session hijacking can allow a hacker to intercept or manipulate ongoing communications. UDP attacks can include reflection and amplification attacks, where small queries elicit large responses to overwhelm a target.

5. Session Layer (Layer 5)

Manages sessions or connections between networked applications.

From a hacker’s perspective:
The session layer provides avenues for hijacking active sessions. Tools like Wireshark can capture session information, which can be replayed to gain unauthorized access. Hackers may also look for session management flaws in web applications (often crossing over with application-layer attacks) where session IDs are predictable or poorly protected.

6. Presentation Layer (Layer 6)

Responsible for data translation, encryption, and compression.

From a hacker’s perspective:
At this layer, encryption is a significant concern. A hacker may attempt to downgrade encryption protocols (forcing a client and server to use weaker cryptographic methods) or exploit vulnerabilities in encryption algorithms. Man-in-the-middle attacks that strip away SSL/TLS encryption, like SSL stripping, also come into play at this layer.

7. Application Layer (Layer 7)

The topmost layer, where end-user applications operate, such as web browsers, email clients, and database applications.

From a hacker’s perspective:
This is the layer where most vulnerabilities are found. Hackers exploit vulnerabilities in software applications (e.g., SQL injection, Cross-Site Scripting (XSS), and Remote Code Execution (RCE)) to gain unauthorized access, exfiltrate data, or compromise systems. This layer is the entry point for many attacks and can offer direct access to valuable data.

The TCP/IP Model: A Streamlined Hacker’s View

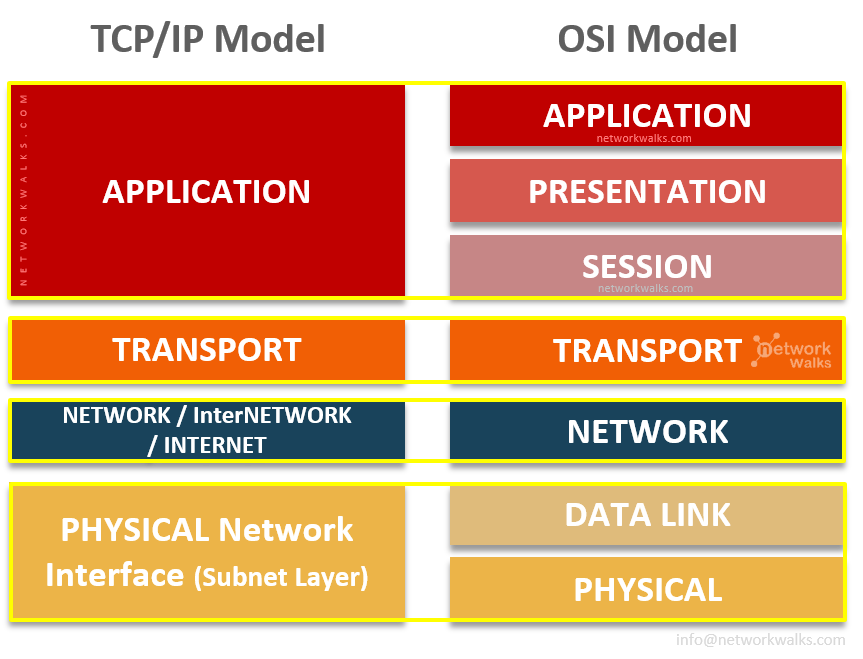

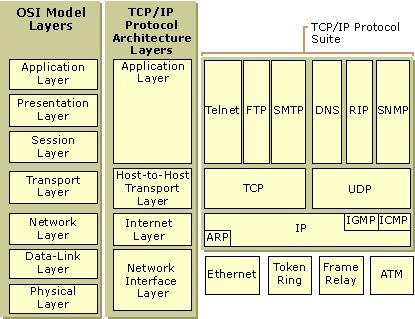

While the OSI model offers a comprehensive understanding of network communication, the TCP/IP model simplifies it into four layers: Link, Internet, Transport, and Application. This model more accurately reflects the real-world protocols and communication processes used on the internet today.

1. Link Layer (Network Interface Layer)

Equivalent to the OSI's Physical and Data Link layers, this layer encompasses protocols that operate on the network hardware level.

From a hacker’s perspective:
At this layer, similar attacks apply: sniffing, MAC flooding, and ARP spoofing. Wireless networks offer even more avenues for attack, including exploiting weaknesses in Wi-Fi encryption protocols (WEP, WPA2) or launching de-authentication attacks.

2. Internet Layer

This layer corresponds to the OSI’s Network layer and deals with the addressing, packaging, and routing of data.

From a hacker’s perspective:
Here, attackers often manipulate IP packets for various purposes, including evading detection or manipulating traffic. Attacks targeting DNS (like DNS poisoning or tunneling) are also prevalent here, as well as exploiting vulnerabilities in IPv4/IPv6 protocols.

3. Transport Layer

Similar to the OSI’s Transport layer, responsible for host-to-host communication.

From a hacker’s perspective:
Many familiar attacks occur here: SYN floods, TCP reset attacks, and port scanning to identify open ports for further exploitation. The Transport layer also presents opportunities for hijacking and manipulating sessions.

4. Application Layer

Combines the functions of the OSI’s Session, Presentation, and Application layers.

From a hacker’s perspective:
This is the most commonly targeted layer, where hackers exploit application vulnerabilities to gain unauthorized access, steal data, or disrupt services. From injecting malicious SQL queries to exploiting buffer overflow vulnerabilities in software applications, this layer provides countless opportunities for exploitation.

Understanding Subnetting and the Mathematics Behind It

Subnetting is a technique used to divide a single IP network into multiple smaller networks, or subnets. This practice is essential in optimizing network performance, enhancing security, and efficiently managing IP address allocation within an organization. From a hacker’s perspective, understanding subnetting is crucial for performing network reconnaissance and navigating through a target's network.

Let’s break down the concept of subnetting, the math behind it, and the steps to perform subnetting.

What is Subnetting?

In the context of IPv4, an IP address is a 32-bit number, typically written in dotted-decimal notation (e.g., 192.168.1.1). An IP address consists of two parts:

1. Network Portion: Identifies the specific network.
2. Host Portion: Identifies a specific device (host) within that network.

Subnetting allows you to take a single network and divide it into multiple smaller networks, effectively splitting the original network into several subnets. This division is done by borrowing bits from the host portion of the IP address to create a new subnet mask.

The Subnet Mask

A subnet mask is a 32-bit number that determines which portion of the IP address represents the network and which represents the host. For example, the default subnet mask for a Class C network is 255.255.255.0, or /24 in CIDR (Classless Inter-Domain Routing) notation. This means that the first 24 bits of the IP address represent the network portion, and the remaining 8 bits represent the host portion.

Why Subnet?

Subnetting is used for several reasons:

• Efficient IP Management: Helps in efficient utilization of IP addresses.
• Improved Network Performance: Reduces network congestion by segmenting broadcast domains.
• Enhanced Security: Limits broadcast traffic and isolates segments of the network.

How Subnetting Works

To understand how subnetting works, we need to explore how bits are borrowed from the host portion to create subnets.

Step 1: Determine the Network Requirements

Consider a network with an IP range 192.168.1.0/24. This network has:

• Default subnet mask: 255.255.255.0 (or /24), meaning 24 bits are reserved for the network portion.
• Hosts: With 8 bits for the host portion, there are 2^8 - 2 = 254 usable IP addresses (the -2 accounts for the network address and the broadcast address).

Suppose we want to create 4 subnets. To calculate how many bits to borrow from the host portion, follow these steps:

Step 2: Calculate the Number of Subnets Needed

We need 4 subnets. To determine how many bits to borrow, use the formula:

Number of subnets=2n\text{Number of subnets} = 2^nNumber of subnets=2n

where n is the number of bits borrowed. To create 4 subnets:

2n=4  ⟹  n=22^n = 4 \implies n = 22n=4⟹n=2

So, we need to borrow 2 bits from the host portion.

Step 3: Calculate the New Subnet Mask

Borrowing 2 bits from the host portion means the subnet mask will increase by 2 bits. The original subnet mask was /24. Now, it becomes /26:

/26=255.255.255.192/26 = 255.255.255.192/26=255.255.255.192

Step 4: Determine the Number of Hosts per Subnet

After borrowing 2 bits for subnetting, 6 bits remain for the host portion:

Number of hosts per subnet=26−2=62\text{Number of hosts per subnet} = 2^6 - 2 = 62Number of hosts per subnet=26−2=62

Each subnet will now support 62 usable IP addresses.

Step 5: Identify the Subnet Ranges

With a /26 subnet mask, the new subnets will have the following IP ranges:

1. First Subnet:
   Network Address: 192.168.1.0
   Subnet Mask: 255.255.255.192
   Range: 192.168.1.1 - 192.168.1.62
   Broadcast Address: 192.168.1.63
2. Second Subnet:
   Network Address: 192.168.1.64
   Subnet Mask: 255.255.255.192
   Range: 192.168.1.65 - 192.168.1.126
   Broadcast Address: 192.168.1.127
3. Third Subnet:
   Network Address: 192.168.1.128
   Subnet Mask: 255.255.255.192
   Range: 192.168.1.129 - 192.168.1.190
   Broadcast Address: 192.168.1.191
4. Fourth Subnet:
   Network Address: 192.168.1.192
   Subnet Mask: 255.255.255.192
   Range: 192.168.1.193 - 192.168.1.254
   Broadcast Address: 192.168.1.255

Subnetting Example: How the Math Works

Let's go through a practical example to illustrate how subnetting math works.

Example Scenario

Given an IP address 192.168.10.0/24, we need to create 8 subnets.

1. Determine the number of bits to borrow:2n=8  ⟹  n=32^n = 8 \implies n = 32n=8⟹n=3So, we need to borrow 3 bits.
2. Calculate the new subnet mask:Original subnet mask /24 becomes /27:255.255.255.224255.255.255.224255.255.255.224
3. Calculate the number of hosts per subnet:After borrowing 3 bits, 5 bits remain for the host portion:Number of hosts per subnet=25−2=30\text{Number of hosts per subnet} = 2^5 - 2 = 30Number of hosts per subnet=25−2=30Each subnet will have 30 usable IP addresses.
4. Identify the subnet ranges:With a /27 subnet mask, each subnet will have an increment of 32 in the fourth octet (since 256 - 224 = 32):

• Subnet 1: 192.168.10.0 - 192.168.10.31 (Network: 192.168.10.0, Broadcast: 192.168.10.31)
• Subnet 2: 192.168.10.32 - 192.168.10.63 (Network: 192.168.10.32, Broadcast: 192.168.10.63)
• Subnet 3: 192.168.10.64 - 192.168.10.95 (Network: 192.168.10.64, Broadcast: 192.168.10.95)
• Subnet 4: 192.168.10.96 - 192.168.10.127 (Network: 192.168.10.96, Broadcast: 192.168.10.127)
• Subnet 5: 192.168.10.128 - 192.168.10.159 (Network: 192.168.10.128, Broadcast: 192.168.10.159)
• Subnet 6: 192.168.10.160 - 192.168.10.191 (Network: 192.168.10.160, Broadcast: 192.168.10.191)
• Subnet 7: 192.168.10.192 - 192.168.10.223 (Network: 192.168.10.192, Broadcast: 192.168.10.223)
• Subnet 8: 192.168.10.224 - 192.168.10.255 (Network: 192.168.10.224, Broadcast: 192.168.10.255)

Table of Common Ports to Focus on During Penetration Testing

When performing penetration testing, understanding which ports are most commonly targeted by attackers is crucial. Hackers often focus on specific ports that are known to be associated with vulnerable services or are commonly misconfigured. Here is a table of ports that penetration testers should pay close attention to during their assessments:

Key Takeaways for Penetration Testers:

• Default Credentials and Misconfigurations: Many services may still use default credentials or may be misconfigured, making them vulnerable to unauthorized access or remote exploitation.
• Cleartext Protocols: Ports that transmit data in cleartext (e.g., FTP, Telnet) are susceptible to eavesdropping and credential theft.
• Outdated Software: Services running on these ports may use outdated software versions with known vulnerabilities.
• Common Exploits: Certain ports are associated with well-known exploits (e.g., SMB on port 445 with EternalBlue), which are frequently targeted by attackers.

By focusing on these ports during penetration testing, security professionals can identify potential vulnerabilities, misconfigurations, and weaknesses in the network, providing a roadmap for improving an organization's overall security posture.

Conclusion

Subnetting is a powerful tool for optimizing network performance and managing IP addresses effectively. By understanding how to manipulate IP addresses and subnet masks, network administrators and hackers alike can gain deep insights into network topology, improve network segmentation, and even identify vulnerabilities.

Understanding the math behind subnetting—calculating the number of subnets, subnet masks, and host addresses—is essential for anyone working with networks, whether for defending against attacks or performing ethical hacking assessments.

For hackers, understanding the OSI and TCP/IP models is akin to having a blueprint of the digital world's architecture. Each layer presents its unique set of challenges and opportunities, whether it’s exploiting misconfigurations, manipulating traffic, or targeting vulnerabilities in applications. A deep understanding of these models allows hackers to navigate complex networks, find hidden vulnerabilities, and carry out sophisticated attacks, emphasizing the need for robust security practices at every layer of the stack.

In the ever-evolving landscape of cybersecurity, defenders must think like attackers—examining each layer for potential weak points and building defenses that can withstand the diverse tactics employed by malicious actors.
